Name: MD-6550A High Performance Airport Scanner X Ray Inspection Machine Security Equipment Xray Baggage Scanners
Brand: Guangdong Maidun Security Equipment Co., Ltd.
Availability: InStock

Home Products Public Place Baggage Scanner

MD-6550A High Performance Airport Scanner X Ray Inspection Machine Security Equipment Xray Baggage Scanners

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	MAIDUN

Contact Now

Detailed Product Description

Type:	Baggage Scanner, Metal Detector, Security Protection Products	Application:	Public Places, Gas Stations, Hotels, Executive Offices, Prisons, Safety Protection, Port, Airport, Station, Security Check
Feature:	Durable	Tunnel Size(mm):	650(L)*500(W)
Conveyor Speed(m/s):	0.22	Conveyor Height(mm):	700
Conveyor Max Load(kgs):	150	X Ray Dose Per Each Inspection:	≤2μGy
Penetration:	8 Mm Steel	Power Consumption:	Max. 800W
Noise:	<60 DB	Ray Direction:	Upward

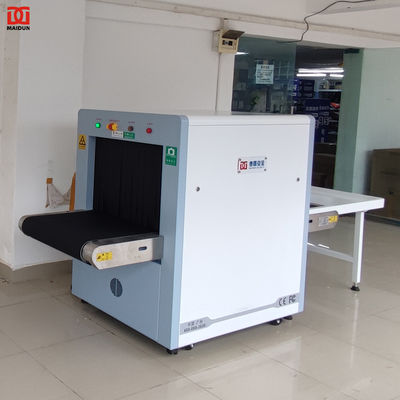

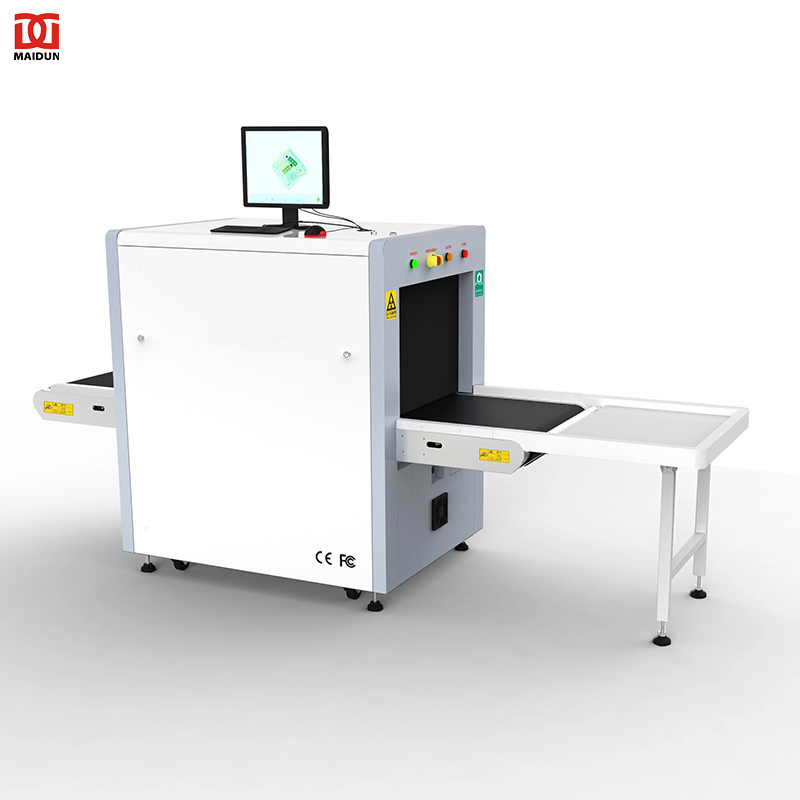

Details Images

Product Paramenters

Brand/Model Names	Maidun / MD-6550A
Tunnel Size(mm)	650(L)*500(W)
Conveyor Speed(m/s)	0.22
Conveyor Height(mm)	700
Conveyor Max Load(kgs)	150
X ray dose per each inspection	≤2μGy
X ray leakage	<1μGy/h at any point 5 centimeters outside the external surface
Penetration	8 mm steel
Wire Resolution	dia 0.0787mm copper wire (AWG40)
Penetration Resolution	dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Spatial resolution:	Horizontal:dia 1.0mm, Vertical: dia 1.0mm
Power Consumption	max. 800W
Noise	<60 dB
Film Safety	Guarantee ASA/ISO1600 Film
Anode Voltage	80 KV
Ray direction	Upward
Cooling / Duty Cycle	Sealed oil cooling /100%
Operation temperature/Humidity	5℃-40℃ / 0%-90%(non-condensing)
Operation Power	220VAC(±10%) 50±3Hz (Options: 110-120V, 230-240V, 60Hz)
Stabilizer and UPS	Optional
System	Embedded Linux operating system, multi core ARM, stable and reliable
International	* ISO19001; ISO14001; ISO45001 * CE
