Name: MD-8065A OEM Customized Factory Wholesale X Ray Machine Price Security Inspection X Ray Baggage Scanner
Brand: Guangdong Maidun Security Equipment Co., Ltd.
Availability: InStock

Home Products Events Baggage Scanner

MD-8065A OEM Customized Factory Wholesale X Ray Machine Price Security Inspection X Ray Baggage Scanner

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	MAIDUN

Contact Now

Detailed Product Description

Type:	Baggage Scanner, Security Protection Products, Inspection System	Application:	Gas Stations, Prisons, Public Places, Safety Protection, Port, Airport, Security Check
Feature:	Durable	Product Name:	X-ray Baggage Scanner
Tunnel Size(mm):	800(L)*650(W)	Conveyor Speed(m/s):	0.22
Conveyor Height(mm):	341	Conveyor Max Load(kgs):	200
Penetration:	34 Mm Steel	Spatial Resolution::	Horizontal:dia 2.0mm, Vertical: Dia 2.0mm
Power Consumption:	Max. 1KW	Noise:	<60 DB

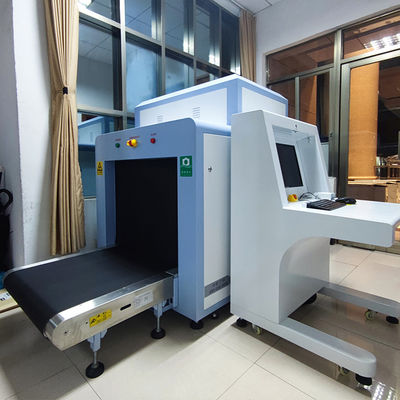

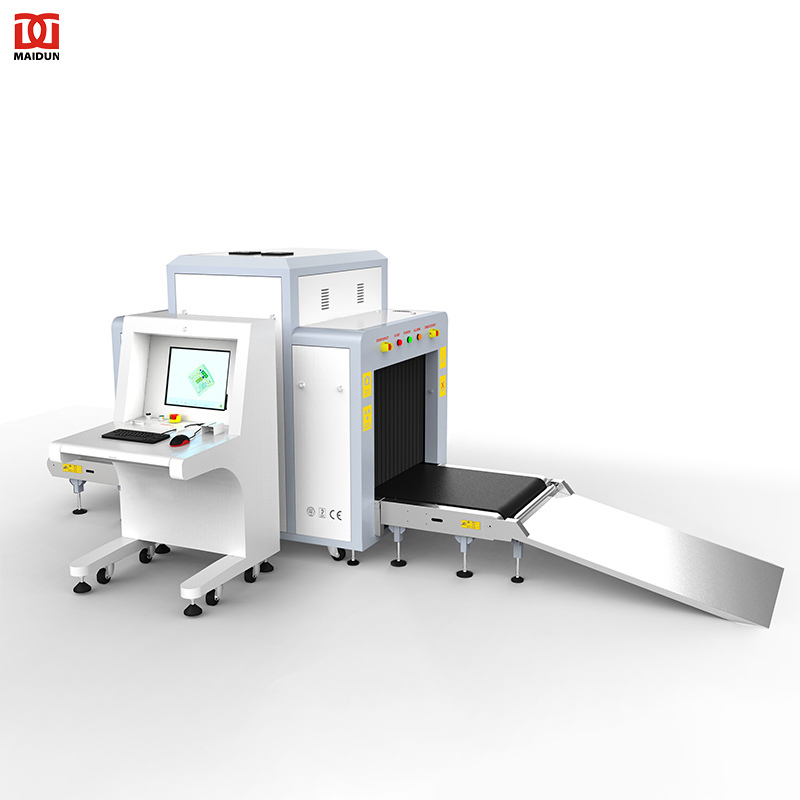

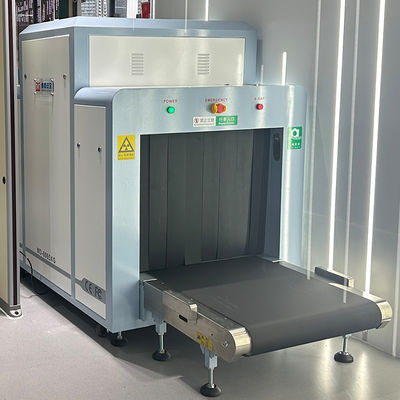

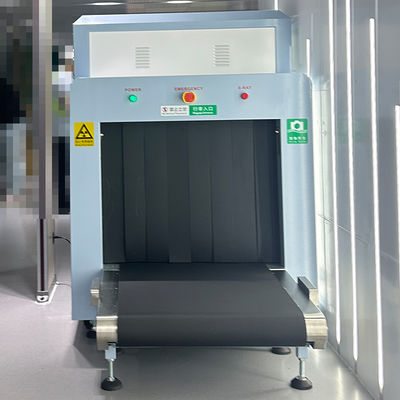

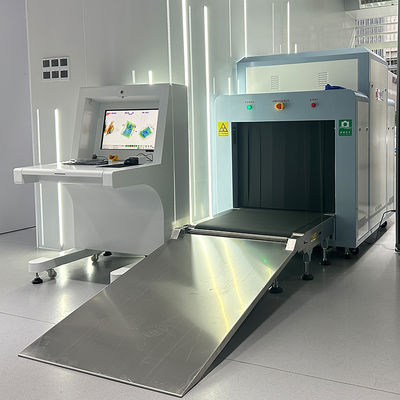

Details Images

Product Paramenters

Brand/Model Names	Maidun / MD-8065A
Tunnel Size(mm)	800(L)*650(W)
Conveyor Speed(m/s)	0.22
Conveyor Height(mm)	341
Conveyor Max Load(kgs)	200
X ray dose per each inspection	≤3.5 μGy
Penetration	34 mm steel
Wire Resolution	AWG38
Penetration Resolution	AWG32
Power Consumption	Max. 1KW
Noise	< 60 dB
Ray Direction	Downward
Anode Voltage	160 KV adjustable
System	Embedded Linux operating system, multi core ARM, stable and reliable
Operation temperature/Humidity	5℃-40℃ / 0%-90%(non-condensing)
Operation Power	220VAC(±10%) 50±3Hz (Options: 110-120V, 230-240V, 60Hz)
Stabilizer and UPS	Optional
